An aerosol filling system combines product dosing, valve placement/crimping and propellant charging. Pressurized and potentially flammable materials require a defined safety-engineering boundary. Compare liquid filling, crimp geometry, gas charging and pressure checks for the approved package. Product filler performance alone does not establish a complete sealed aerosol line. Validate fill mass, crimp dimensions, leakage and internal pressure with the actual formulation/package. Include interruption recovery, rejection and the documented safety-function tests agreed for the assembly. Project-specific OEM branding and ODM engineering should be described in the inquiry and reviewed for feasibility before an offer is finalized.
An aerosol filling system combines product dosing, valve placement/crimping and propellant charging. Pressurized and potentially flammable materials require a defined safety-engineering boundary. Start with product formulation and propellant identity and can valve bag-on-valve drawings, then compare the complete configured system and a documented acceptance trial.
Shown as a configuration reference. Availability and the equipment offered for your project are confirmed separately.
Define the aerosol filling machine process boundary
An aerosol filling system combines product dosing, valve placement/crimping and propellant charging. Pressurized and potentially flammable materials require a defined safety-engineering boundary.
Use this boundary when reviewing proposals. The adjacent process must be named explicitly, so an inexpensive machine-only offer is not confused with a complete working installation.
Product formulation and propellant identity: describe the real input
Provide formulation, propellant, can and valve drawings, dose range and pressure conditions. Include product compatibility, foaming and any bag-on-valve construction rather than assuming all aerosol formats are interchangeable.
Submit representative samples, drawings or a production record where available. Identify normal variation and the most demanding condition, because an easy demonstration does not establish performance across every intended application.
Compare aerosol filling machine configurations
Compare liquid filling, crimp geometry, gas charging and pressure checks for the approved package. Product filler performance alone does not establish a complete sealed aerosol line.
Ask bidders to mark their selected arrangement and alternatives on the offer. Keep the stated assumptions with the quotation, and distinguish useful output from an unloaded cycle or another nominal catalog maximum.
Integrate the aerosol filling machine with adjoining equipment
Define can feeding, valve handling, propellant supply, leak testing and downstream inspection. The responsible designer must address ventilation, detection, containment and safe response to a rejected container.
A line layout should show transfer directions, control handshakes and responsibility for each connecting part. Include the consequences of upstream stoppages and downstream unavailability in the review.
| Decision | Requirement to define | Evidence in the offer |
|---|---|---|
| Application | Provide formulation, propellant, can and valve drawings, dose range and pressure conditions. | Agreed input envelope and exclusions |
| Configuration | Compare liquid filling, crimp geometry, gas charging and pressure checks for the approved package. | Selected arrangement and engineering assumptions |
| Integration | Define can feeding, valve handling, propellant supply, leak testing and downstream inspection. | Interface drawing and responsibility boundary |
| Installation | Review hazardous-area classification where applicable, gas services, earthing and fire protection with qualified specialists. | Site layout and utility scope |
| Acceptance | Validate fill mass, crimp dimensions, leakage and internal pressure with the actual formulation/package. | Recorded application trial and sampling method |
| Service | Maintain seals, crimp tooling, dosing valves and gas-side components with material traceability. | Identified wear components and maintenance access |
Plan aerosol filling machine installation and utilities
Review hazardous-area classification where applicable, gas services, earthing and fire protection with qualified specialists. Equipment arrangement and maintenance access must follow the project safety assessment.
Confirm the destination electrical supply and the services actually available during production. Include delivery access, placement, commissioning and operator training in the installed scope, with exclusions made visible before ordering.
Write a aerosol filling machine acceptance protocol
Validate fill mass, crimp dimensions, leakage and internal pressure with the actual formulation/package. Include interruption recovery, rejection and the documented safety-function tests agreed for the assembly.
Agree which material, recipe or load is used, who measures the result and how unsuccessful checks are resolved. Preserve the tested configuration with the report so the delivered machine can be compared with the accepted demonstration.
Service the configured aerosol filling machine
Maintain seals, crimp tooling, dosing valves and gas-side components with material traceability. Define depressurization and isolation procedures before servicing any product or propellant circuit.
Request a parts list and the documentation needed by the receiving maintenance team. Separate preventive service, consumables, remote assistance and site visits in the commercial scope; confirm the destination support arrangement for the selected supplier.
OEM branding and ODM engineering for aerosol filling machine
Can formats, dosing stations and line controls may be engineered. Propellant changes or pressure-system alterations require specialist assessment and renewed testing; branding cannot confer hazardous-area suitability.
OEM requests may cover branding, packaging and agreed manuals for equipment supplied under an appropriate arrangement. ODM is an engineering discussion with defined drawings, change approval, verification and spare-part identification. Neither option implies authorization to relabel the reference manufacturer shown here.

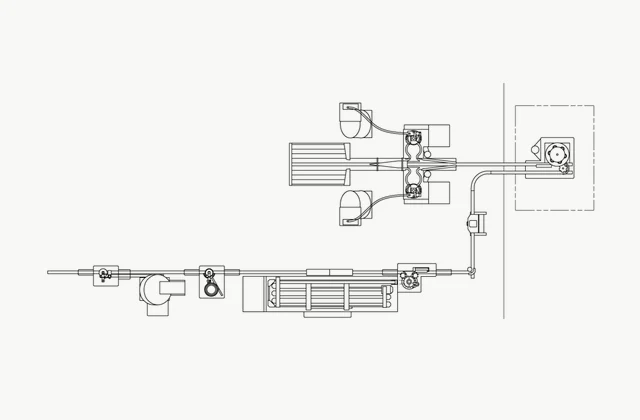

Pamasol Macromat aerosol filling line is shown as a technical configuration reference. The image and reference names do not establish IndustryApex inventory, authorized dealership, equivalent performance or availability. Confirm the offered manufacturer, exact configuration and commercial responsibilities for your project.
Compare the adjoining process before fixing the supply boundary:
What should your aerosol filling machine RFQ include?
- Product formulation and propellant identity
- Can valve bag-on-valve drawings
- Dose pressure and compatibility targets
- Liquid crimp gas charging sequence
- Propellant supply and leak-test scope
- Ventilation detection reject interfaces
- Hazardous-area and fire engineering
- Mass crimp leakage safety trials
- Seal crimp gas-component service
- OEM records ODM aerosol integration
Need OEM / ODM customization?
Submit branding, packaging, configuration or engineering requirements for this equipment. Include the target market, initial and annual quantities, required changes and acceptance criteria.
Customization feasibility, permitted branding, development responsibilities, minimum quantity, cost and lead time are reviewed for the proposed supplier and configuration before a quotation is confirmed.
Frequently asked questions
What information is needed to select a aerosol filling machine?
Provide formulation, propellant, can and valve drawings, dose range and pressure conditions. Include product compatibility, foaming and any bag-on-valve construction rather than assuming all aerosol formats are interchangeable. Supply this information for the actual application, including the normal variation. It gives suppliers a defined selection envelope and makes assumptions in competing quotations visible.
Which configuration choices matter for a aerosol filling machine?
Compare liquid filling, crimp geometry, gas charging and pressure checks for the approved package. Product filler performance alone does not establish a complete sealed aerosol line. Ask for the selected arrangement in writing with its application limits, so the trial and delivered configuration refer to the same equipment.
What equipment belongs around a aerosol filling machine?
Define can feeding, valve handling, propellant supply, leak testing and downstream inspection. The responsible designer must address ventilation, detection, containment and safe response to a rejected container. Request an interface drawing and identify who supplies the connecting components, controls and commissioning work rather than relying on a broad turnkey description.
What installation requirements should be reviewed for a aerosol filling machine?
Review hazardous-area classification where applicable, gas services, earthing and fire protection with qualified specialists. Equipment arrangement and maintenance access must follow the project safety assessment. Check the receiving site early, including services during production and clearances during maintenance. Record responsibility for the installation and local engineering reviews.
How should a aerosol filling machine be accepted and maintained?
Validate fill mass, crimp dimensions, leakage and internal pressure with the actual formulation/package. Include interruption recovery, rejection and the documented safety-function tests agreed for the assembly. Maintain seals, crimp tooling, dosing valves and gas-side components with material traceability. Define depressurization and isolation procedures before servicing any product or propellant circuit.
Can a aerosol filling machine support OEM or ODM requirements?
Can formats, dosing stations and line controls may be engineered. Propellant changes or pressure-system alterations require specialist assessment and renewed testing; branding cannot confer hazardous-area suitability. Describe OEM branding and documentation separately from ODM mechanical, process or control changes. Feasibility, engineering ownership and acceptance evidence must be confirmed for the proposed supplier and configuration.
Reference information
- Pamasol-Swiss-Aerosol-Solutions
- Pamasol Aerosol filling machine technical documentation
Reference data and images explain equipment configurations. IndustryApex engineers confirm the offered model, specification and commercial scope in your project quotation.
