Equipment category
Specify compressed air, process gases, water, cooling, vacuum and filtration using measured operating conditions and complete system boundaries.
An industrial ultrafiltration system separates suspended and colloidal material through membranes with a controlled operating and cleaning cycle. It is a solids-barrier process, distinct from reverse osmosis or nanofiltration aimed at dissolved-ion separation. Membrane pretreatment or clarification; feed fouling and permeate targets define design.
Explore the buying guideReference: Pure Aqua Industrial UF system
An industrial nanofiltration system uses pressure-driven membranes to separate selected dissolved species from water. It sits between broad particulate filtration and more extensive desalination duties, so actual membrane rejection and feed chemistry must define the application. Selective membrane separation; dissolved-species targets and recovery must be specified.
Explore the buying guideReference: Pure Aqua NF-500 system
An electrodeionization system combines ion-exchange media, membranes and an electrical field to polish a suitably pretreated water stream. It is a deionization stage, commonly following appropriate upstream purification, rather than a substitute for treating untreated industrial source water. Polishes pretreated water for ionic purity; feed quality and downstream use define suitability.
Explore the buying guideReference: Pure Aqua EDI system
An industrial water softener exchanges hardness-forming ions using a regenerable resin bed. It addresses calcium and magnesium hardness, distinct from removing all dissolved salts or providing a particulate or microbiological barrier. Reduces hardness by a defined treatment cycle; source-water analysis and regeneration matter.
Explore the buying guideReference: Pure Aqua Industrial water softener
An activated carbon water filter uses a selected carbon bed to adsorb or react with specified water constituents. Its design must target the contaminant and contact conditions, distinct from a multimedia filter primarily removing suspended matter. Adsorptive treatment for specified contaminants; media replacement and breakthrough govern selection.
Explore the buying guideReference: Pure Aqua Activated carbon filter installation
A multimedia water filter passes water through graded filter media to retain suspended solids while distributing loading through the bed. It is a particulate-preparation process, distinct from adsorption by activated carbon or ion exchange for hardness removal. Depth filtration of suspended material; inlet solids and backwash infrastructure drive sizing.
Explore the buying guideReference: Pure Aqua Industrial FRP multimedia filter
An industrial bag filter housing contains a replaceable filter bag supported by a basket to remove particles from a liquid stream. Housing pressure integrity and bag retention are separate requirements from the bag's nominal filtration rating. Replaceable-bag liquid filtration; particle target, pressure and bag compatibility define the family.
Explore the buying guideReference: Amazon Filters 84 Series single bag filter housing
A self-cleaning disc filter retains particles in a compressed stack of grooved discs and periodically cleans the media through a controlled backwash sequence. It is a dedicated automatic water-filtration technology rather than a general replaceable cartridge or bag filter. Disc-media water filtration with automated cleaning; inlet debris and backwash supply matter.
Explore the buying guideReference: Amiad 3 inch Spin Klin
An industrial UV water disinfection system exposes a characterized water stream to controlled ultraviolet treatment. Selection concerns validated treatment at the required flow and water quality, distinct from a claim that any illuminated water reactor delivers equivalent disinfection. UV treatment of a characterized water stream; transmissivity and treatment validation are essential.
Explore the buying guideReference: Aquafine / Trojan Technologies OptiVenn industrial UV reactor
An ozone generator produces an oxidizing gas for an engineered treatment process. Generator output, transfer into the water and controlled destruction of residual gas must be considered together. Produces ozone for an engineered treatment process; off-gas management and exposure controls are required.
Explore the buying guideReference: Xylem WEDECO SMOevoPLUS
A chlorine dioxide system generates disinfectant on site from the specified chemical route and meters it into a treatment stream. Chemical quality, dose control and residual verification define the project. On-site disinfectant generation; precursor handling and destination approval require project review.
Explore the buying guideReference: ProMinent Bello Zon CDEb
Dissolved air flotation releases fine bubbles that attach to suitable contaminants and lift them for removal. Coagulation, flocculation, recirculation and sludge handling determine performance on an actual wastewater stream. Separates suitable floatable contaminants; jar testing and sludge removal define the project.
Explore the buying guideReference: HUBER HDF
A lamella clarifier uses inclined plates to shorten the settling distance for suspended particles. It relies on actual solids settleability and controlled feed distribution, unlike flotation of buoyant material. Settles suspended solids in an inclined-plate arrangement; actual settleability and cleaning drive selection.
Explore the buying guideReference: Metso IPS
An MBR combines biological treatment with membrane separation to retain biomass and produce clarified permeate. Biological loading, membrane fouling and sludge management must be engineered as connected processes. Combines biological treatment and membrane separation; wastewater trials and sludge management matter.
Explore the buying guideReference: Alfa Laval MFP2 MBR membrane filtration module
An MBBR supports biological growth on carriers retained within a mixed reactor. The biofilm treats a defined wastewater load while downstream equipment separates the excess solids produced. Carrier-based biological treatment; wastewater loading and aeration define the process boundary.
Explore the buying guideReference: Veolia Water Technologies MBBR Pack wastewater treatment installation
A sludge filter press dewaters a conditioned suspension through cloth-covered plates in a batch cycle. Feed behavior, cake release and cloth maintenance govern useful output. Batch pressure dewatering; cake handling and conditioning trials determine usable output.
Explore the buying guideReference: Micronics 1500 mm filter press

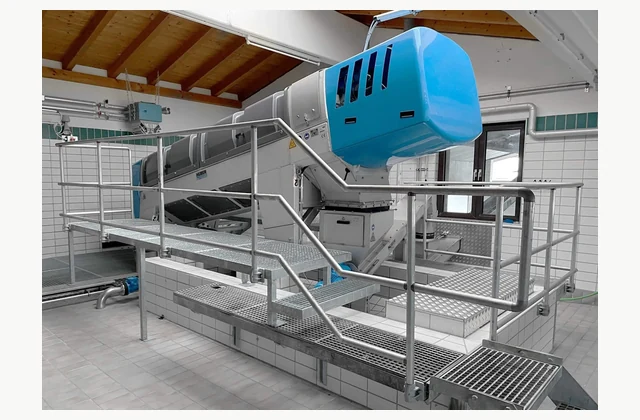

A sludge screw press continuously compresses conditioned sludge within a filtering enclosure. Floc quality, feed variation and discharge resistance determine cake and filtrate quality. Continuous screw dewatering; compare feed variability, polymer use and accepted cake condition.
Explore the buying guideReference: HUBER Q-PRESS
A decanter centrifuge continuously separates a solids-bearing feed through a rotating bowl and internal screw conveyor. Density difference, particle behavior and abrasion determine the selected configuration. Centrifugal continuous separation of solids and liquid; abrasion and feed variation drive design.
Explore the buying guideReference: Alfa Laval SG3 decanter cross-section

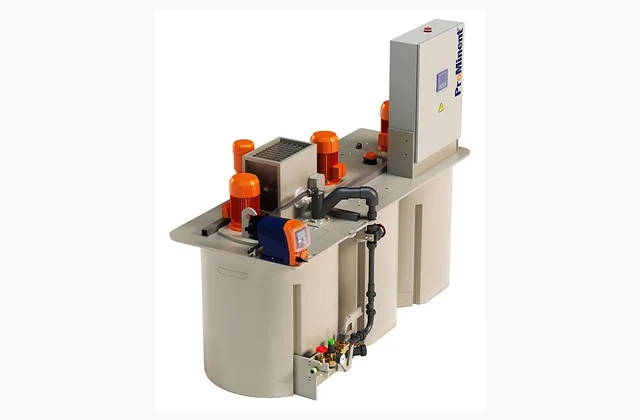

A polymer station wets, mixes and matures powder or emulsion into a solution suitable for downstream dosing. Preparation capacity, concentration and maturation are different design requirements. Makes and doses conditioning solution; powder or emulsion format and maturation determine scope.
Explore the buying guideReference: ProMinent DULCODOS ULFb
A rotary drum screen separates material by passing wastewater through a defined opening while the drum conveys retained solids. Screening precedes treatment and does not by itself remove dissolved contamination. Screens coarse solids ahead of treatment; screenings handling and clear opening define selection.
Explore the buying guideReference: HUBER RoMesh

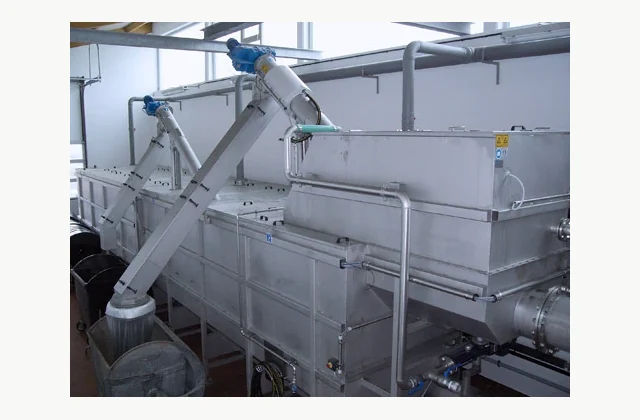

A grit separator removes suitable dense mineral particles from wastewater before they abrade or settle in later equipment. Hydraulic conditions and organic carryover determine the recovered material's quality. Removes settling grit before sensitive equipment; flow variation and grit disposal define its role.
Explore the buying guideReference: HUBER ROTAMAT Ro5 integrated grit separation
An oil-water separator removes a characterized oil phase from water using a suitable separation mechanism. Free droplets, stable emulsions, detergents and solids require different treatment decisions. Separates a characterized oily water stream; free versus emulsified oil determines treatment suitability.
Explore the buying guideReference: Alfa Laval PureBilge oily water separator
A membrane contactor transfers dissolved gases across a hydrophobic membrane using a gas-pressure gradient. Water remains on its defined side while vacuum or sweep gas controls the removal duty. Removes dissolved gases through membrane contact; gas targets and pressure conditions drive sizing.
Explore the buying guideReference: 3M / Solventum Liqui-Cel membrane contactor degassing installation
A wastewater evaporator separates a volatile water fraction from a concentrated residue using a defined heat and vapor-handling system. Distillate quality and residue disposal are both essential to feasibility. Concentrates a process waste stream; scaling, residue disposal and heat source define feasibility.
Explore the buying guideReference: Condorchem Envitech ENVIDEST LT FC-2
Build a comparable request
Share the application, required output, destination, utilities, quantities and planned timing. For OEM / ODM projects, include the branding, configuration or engineering changes, sample approval and acceptance requirements.
Practical buying decisions
A wastewater evaporator RFQ needs representative feed analysis, its variation and a defined destination for condensate and concentrated residue. Mechanical vapor recompression is a process option to evaluate against that feed and the available utilities. Do not compare an evaporation rate or an energy figure…
Read the guideA comparable wastewater evaporation concentrator quotation starts with wastewater evaporation concentrator application and required process result, waste stream and concentration target, heat pump MVR or available heat. Record the required result, site interfaces and acceptance evidence in one revision-controlled RFQ. IndustryApex engineers use these inputs…
Read the guideA comparable membrane water degassing system quotation starts with membrane water degassing system application and required process result, water and dissolved gas target, vacuum sweep and staging. Record the required result, site interfaces and acceptance evidence in one revision-controlled RFQ. IndustryApex engineers use these inputs…
