Equipment category
Define your application, required output and site conditions before comparing equipment proposals.

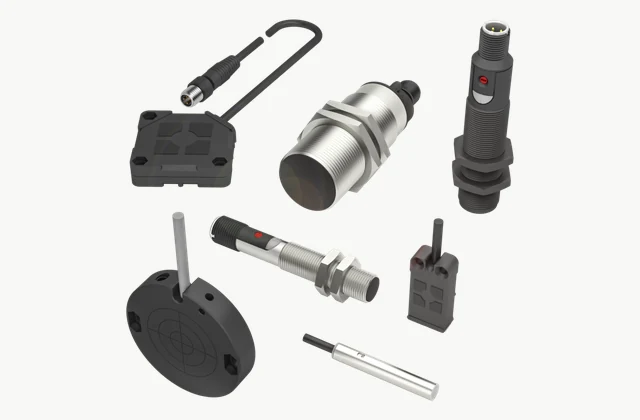

A capacitive proximity sensor detects changes in an electric field caused by nearby material. It can detect nonmetallic targets, but moisture and deposits can also change its response. Start with target material and container wall, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Balluff BCS capacitive proximity sensor family
A color detection sensor distinguishes objects by reflected color information. The task differs from simple presence detection because illumination, surface finish and color variation affect the classification. Start with color sample set and allowed shade variation, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Banner Engineering QCM50 color sensor

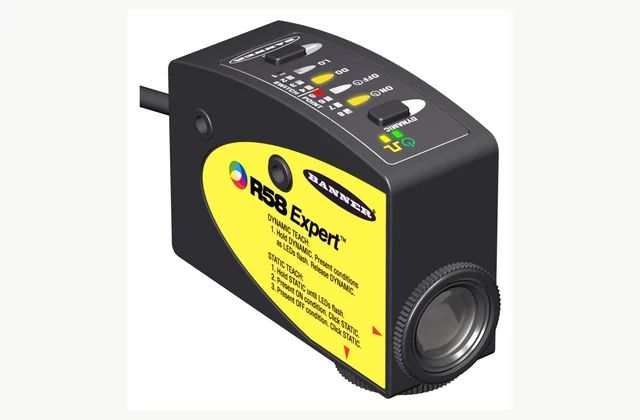

A contrast mark sensor detects a registration mark against its surrounding material to synchronize a converting or packaging process. Repeatable edge detection matters more than identifying an absolute color. Start with printed mark and background and mark dimensions, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Banner Engineering R58E color registration sensor
A fiber optic sensor separates the optical sensing head from its amplifier using an optical fiber assembly. It supports confined or demanding sensing locations but requires the fiber and amplifier to be selected as a system. Start with target and detection mode and gap and position variation, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Banner Engineering DF-G1 fiber optic amplifier

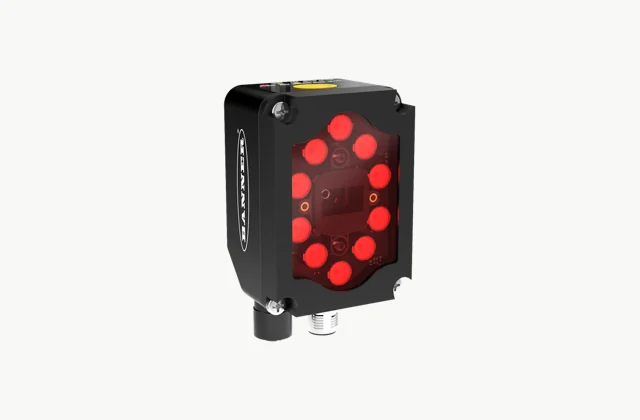

A fixed industrial barcode reader decodes moving or stationary identifiers for tracking and process control. Reading a code is separate from verifying that its content is correct for the part and process. Start with code symbology and size and printed or direct mark, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Banner Engineering ABR barcode reader

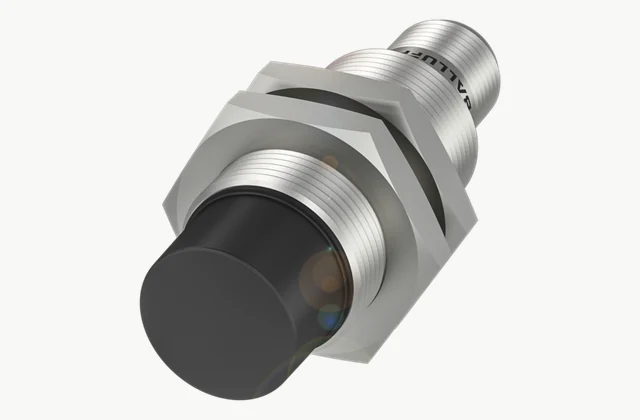

An inductive proximity sensor detects metallic targets without physical contact. Its useful switching distance depends on target material, geometry and installation, not simply the nominal catalogue range. Start with target metal and size and approach direction, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Balluff BES 516-360-E5-Y-S4 inductive sensor
An industrial RFID reader exchanges data with tags to identify assets or workpieces without an optical code view. The system requires a compatible tag, reader, antenna and data architecture. Start with tag and frequency and mounting material, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Balluff BIS M-400-007-001-02-S115 HF RFID read/write head
An industrial flow sensor measures or detects movement of a defined liquid or gas in a process line. Measuring principle and wetted materials should be selected for the actual medium. Start with fluid and composition and flow range and direction, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Balluff BFF T7080-JA001-D06A2A-S4 thermal flow sensor

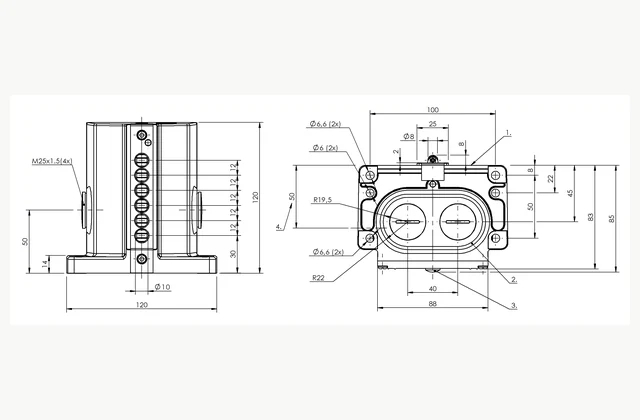

An industrial limit switch converts mechanical position into an electrical switching state through a lever, plunger or other actuator. The complete operating mechanism must suit the target motion. Start with target motion and cam and actuation speed, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Balluff BNS 829-D06-L12-100-10-FD mechanical limit switch dimensional design
An industrial temperature probe couples a sensing element with a mechanical assembly suited to the process. Element accuracy alone does not establish the response and uncertainty of the installed measurement. Start with medium and temperature envelope and pressure, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Balluff BFT 6050-FC002-A06A1A-S4 contact temperature sensor
A laser displacement sensor measures a distance or dimensional change using reflected light. Surface reflectivity, angle and target structure determine whether the selected optical principle can produce stable results. Start with target surface samples and measuring distance, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Banner Engineering LE550 laser measurement sensor
A laser profile sensor captures a cross-sectional height profile along a projected line. It supports shape, step or bead measurement when the optical geometry can view the features of interest. Start with profile drawing and width and height envelope, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: LMI Technologies Gocator laser line profile sensor family
A linear position transducer measures travel along a defined axis for machine or cylinder feedback. The selected sensing technology and mechanical interface must suit the motion and environment. Start with required stroke and position and accuracy needs, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Balluff BTL7-W series analog magnetostrictive linear position transducer

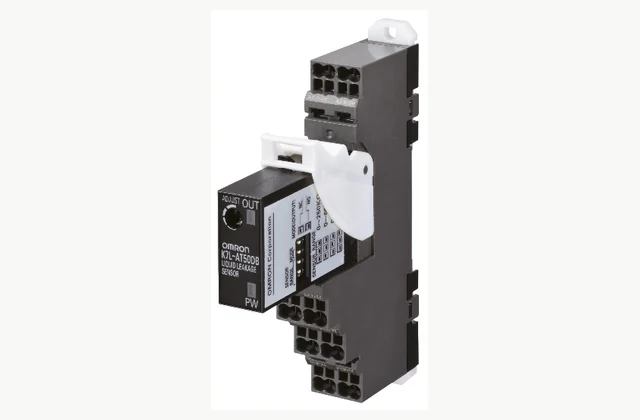

A liquid leakage sensor detects unintended liquid at a monitored location through a sensing cable, probe or other compatible method. Detection depends on the liquid and placement, not simply the length of installed cable. Start with liquid chemistry and conductivity and leak path, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: OMRON K7L liquid leakage amplifier and sensing system

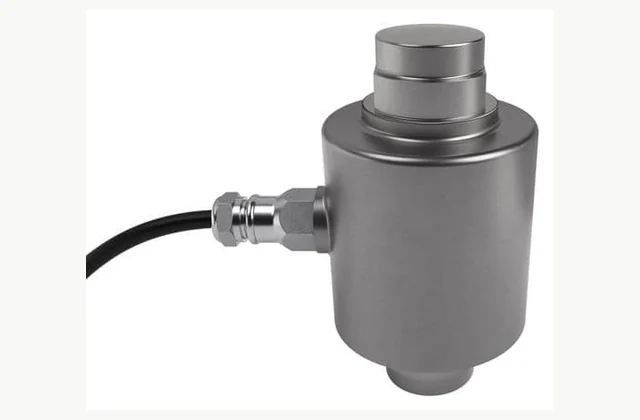

A load cell converts mechanical load into an electrical measurement used by a weighing or force system. Load introduction, restraints and signal conditioning are as important as the sensing element. Start with net range and dead load and minimum useful weight, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Flintec RC3 compression load cell
A machine vision camera acquires images for inspection, identification or guidance. A reliable application depends on optics, lighting, timing and a defined decision method as well as camera resolution. Start with part and defect samples and feature size and field, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Banner Engineering VE smart camera
A machine vision controller processes camera images and returns inspection results to production equipment. It owns analysis and job coordination; cameras and lighting still need to be engineered for the application. Start with camera and image load and inspection tasks, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: KEYENCE CV-X machine vision controller system
Machine vision illumination creates the optical contrast needed to reveal features or defects. Lighting selection should be driven by the surface and measurement task rather than brightness alone. Start with target finish and feature and defect, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Banner Engineering Machine vision area light family
A machine vision lens determines field of view, focus and geometric performance for an industrial camera. Sensor size, working distance and the inspection task must be considered together. Start with camera format and mount and field of view, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Computar V2520-MPZ machine vision lens
A photoelectric sensor detects objects using an emitted light beam and a receiver. Through-beam, retroreflective and diffuse arrangements solve different problems and should not be treated as interchangeable. Start with target material and size and reflectivity and transparency, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Banner Engineering QS18 photoelectric sensor

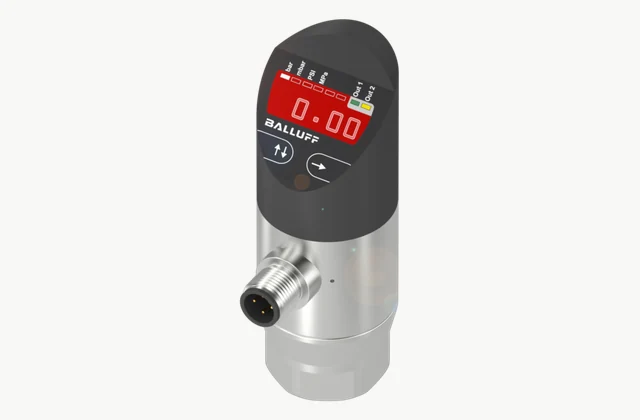

A pressure transducer converts a defined fluid pressure into an electrical signal. Selection requires the pressure reference, wetted assembly and operating transients as well as the nominal measurement range. Start with pressure reference and range and medium chemistry, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Balluff BSP B100-EV002-A03A0B-S4 digital pressure sensor
A rotary encoder reports angular motion or position for a drive or machine. Incremental and absolute designs provide different information after startup and require matching controller interfaces. Start with speed and acceleration and position resolution, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Encoder Products Company Model 25SP rotary encoder and cable
An ultrasonic distance sensor uses sound reflections to detect position or presence. It can address some optically difficult targets, but angle, air conditions and the near-field blind zone constrain its use. Start with target size and angle and distance and blind zone, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Banner Engineering T30UX ultrasonic sensor
A vibration condition sensor measures machine vibration to support trend monitoring and maintenance decisions. It should be selected around failure mechanisms, mounting location and the analysis method rather than a generic alarm threshold. Start with machine and failure mode and mounting point, then agree the configuration and the evidence required for acceptance.
Explore the buying guideReference: Banner Engineering QM30VT vibration sensor
Build a comparable request
Share the application, required output, destination, utilities, quantities and planned timing. For OEM / ODM projects, include the branding, configuration or engineering changes, sample approval and acceptance requirements.
Practical buying decisions
A comparable vibration condition sensor quotation starts with machine and failure mode, mounting point, operating speed range. Record the required result, site interfaces and acceptance evidence in one revision-controlled RFQ. IndustryApex engineers use these inputs to define the equipment, integration and OEM/ODM scope for your…
Read the guideA comparable ultrasonic distance sensor quotation starts with target size and angle, distance and blind zone, air and vapor conditions. Record the required result, site interfaces and acceptance evidence in one revision-controlled RFQ. IndustryApex engineers use these inputs to define the equipment, integration and OEM/ODM…
Read the guideA comparable rotary encoder quotation starts with speed and acceleration, position resolution, startup reference. Record the required result, site interfaces and acceptance evidence in one revision-controlled RFQ. IndustryApex engineers use these inputs to define the equipment, integration and OEM/ODM scope for your project.
Read the guide
