A precision manufacturing system should be designed from the finished-part drawing, material, datums and acceptance method. IndustryApex engineers review the sequence of processing, workholding, handling and inspection before selecting equipment. Prove the critical features on representative parts and identify the operations and interfaces included in the quotation.
IndustryApex specialist websites
Choose the team for your project.
Automation systems, custom component enquiries and factory drawing reviews have dedicated websites. Choose the route that matches what you need to buy.
Custom CNC parts & component sourcing
Explore the component and application catalogue, then discuss drawings, materials, quantities and finishing requirements.
CNC factory capability & drawing review
Review CNC manufacturing capabilities, production workflow and inspection, then request a project assessment.
For CNC machine purchases or a broader equipment system, use the main equipment catalogue or IndustryApex project request.
Which production problem should this system solve?
This route suits buyers comparing an isolated machine purchase with a coordinated manufacturing process. The part may need cutting, forming, joining, machining, surface treatment and inspection, but only the operations required by the drawing belong in the proposed scope. Map the current process and identify the feature or handling step that constrains quality or capacity. Preserve the relationship between raw-material variation, locating surfaces and the final inspection datum.
Define the equipment and integration boundary
A proposed process may combine machines, tooling, fixtures, handling, cleaning and inspection with program or recipe management. State responsibility at every transfer between operations. Process trials should demonstrate critical features rather than only a visually attractive sample. For a new material or advanced process, record the development work and unknowns before an equipment configuration is treated as a production solution.
Compare the system routes for your application
| Route | Application fit | Decision to verify |
|---|---|---|
| Improve a constrained operation | One proven production step limits accepted output or creates rework. | Specify its incoming condition, outgoing requirement and interaction with neighboring steps. |
| Integrate a part-family process | Several operations share a defined part family, fixtures and production plan. | Compare datum transfer, buffers, cleaning, inspection and changeover responsibilities. |
| Develop an advanced-process route | A material or feature needs process development before production selection. | Separate trials, tooling and qualification from the final equipment supply commitment. |
Equipment modules and buying guides
Fiber laser cutting machine
Review the equipment boundary and configuration questions.
Reference: SENFENG SF4020N (N series)

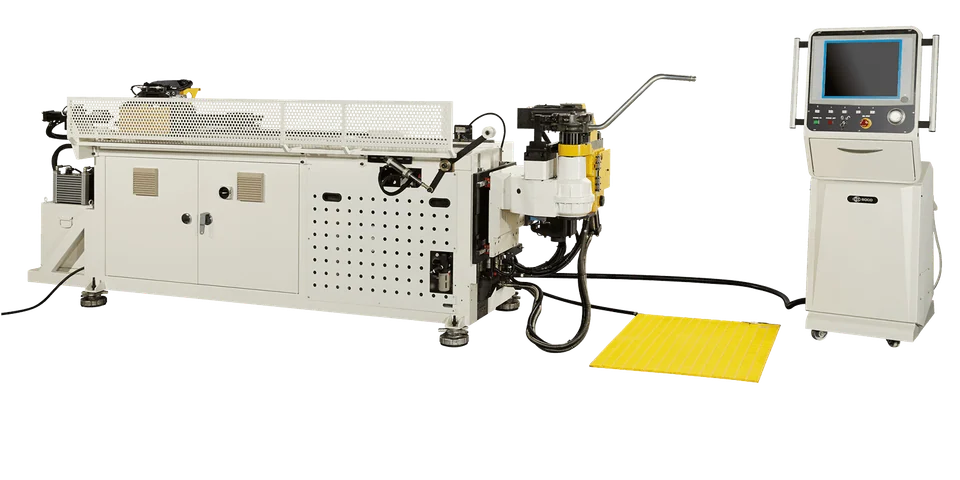

CNC tube bending machine
Review the equipment boundary and configuration questions.
Reference: SOCO Machinery A series (pictured SB-30X4A configuration)

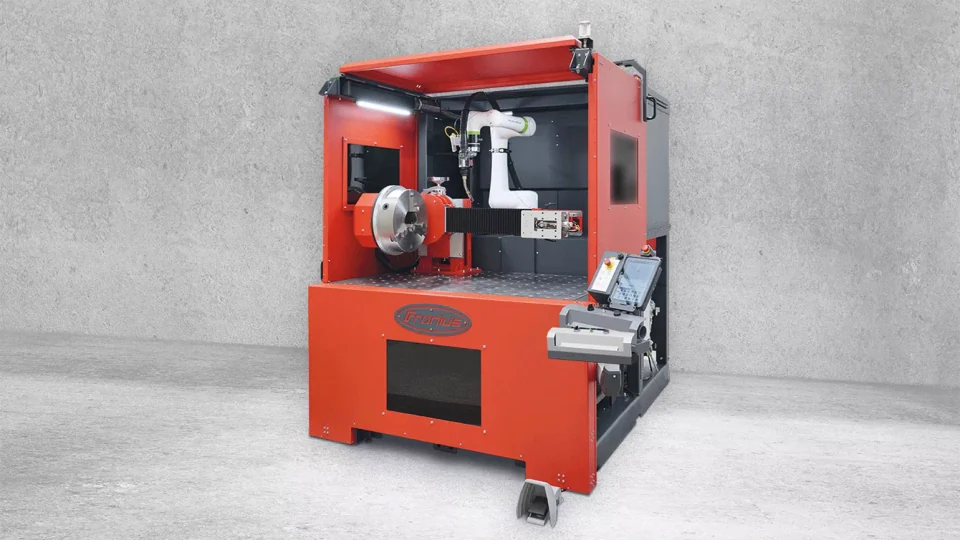

Robotic welding cell
Review the equipment boundary and configuration questions.
Reference: Fronius CWC-S cobot welding cell
Actual manufacturer reference images show individual equipment modules, not an IndustryApex installation or a complete offered line. The project quotation confirms the equipment supplied.
How should the complete system be accepted?
Agree the part revision, sample population and measurement method before trials. Record critical features, accepted output, tool or consumable condition and relevant process settings. Review variation across a run instead of relying on a single selected part. Confirm how fixtures, measurement equipment and program versions are identified. If the actual site environment affects the requirement, define the remaining site acceptance work explicitly.
Compare the complete project economics
Compare cost per accepted part using a consistent production mix. Include tooling, fixturing, consumables, inspection, handling, scrap and changeover work. Do not count nominal machine speed as saleable output when another operation is the bottleneck. Separate one-time engineering and trial costs from repeat equipment or consumable purchases so future expansion can be compared fairly.
Use the procurement cost tools to organize explicit assumptions. Your own measured inputs and confirmed quotations determine the project budget.
Prepare your engineering project brief
- Request type: production equipment, custom machined parts or production fixtures; initial and repeat quantities
- Approved finished-part drawings and critical characteristics
- Material grade, raw-stock condition and permitted variation
- Current process map with cycle and quality observations
- Datum and workholding strategy for every operation
- Sample parts and the agreed inspection methods
- Production mix, batch sizes and changeover frequency
- Required utilities, environmental conditions and operator skills
- Development, factory acceptance and site acceptance responsibilities
Frequently asked questions
Can I request custom CNC machined parts or fixtures?
Yes. Send the drawing revision, material grade, critical datums and tolerances, quantity, surface finish and inspection requirements for a project-specific engineering and sourcing review. Manufacturing feasibility and the offered commercial scope are confirmed in your quotation.
Can different machines form one quoted system?
Yes, the project can be assessed as a coordinated scope. Identify transfer conditions, interface owners, control responsibilities and the acceptance boundary between operations.
Does a sample prove production capability?
One sample establishes only what was demonstrated. Agree representative materials, parts and run conditions, then record the required quality and output over the acceptance plan.
Can OEM or ODM work be included?
Branding, documentation, fixtures, handling, controls and functional development can be reviewed. State the intellectual-property, validation and support responsibilities in the proposal.
Can the system support OEM and ODM requirements?
IndustryApex reviews branding, documentation, tooling, controls and functional changes for the project. Feasibility, engineering work, validation, price and delivery are confirmed in the specific proposal.
What should I send to request an engineering assessment?
Send the application, representative product or process information, required output, site conditions, destination and planned timing. Our engineers use these inputs to define the next technical questions and proposed supply boundary.
Reference basis and project evidence
The following reference material informs the selection questions. It does not establish an IndustryApex project, a brand authorization or a performance promise.
- TRUMPF tube-processing process chain
- TRUMPF part and process optimization
Request the technical evidence, sample tests and acceptance records for your proposed configuration. Reviewed 2026-10-22.
