Choose a desiccant air dryer by reviewing required pressure dew point, regeneration losses and the complete filtration train. Start with the actual process and its difficult operating cases, then compare the complete configuration, installation duties and acceptance evidence. Send required pressure dew point, end-use and lowest temperature and delivered dry-air flow profile with your inquiry. Ask for an itemized scope and review any OEM/ODM changes before ordering, so pricing and tests cover the same requirement.
Applications and the selection basis
Low-moisture processes or cold downstream conditions may justify adsorption drying. Specify the required pressure dew point at the use point and the operating flow range. Drying below what the process needs can add unnecessary cost, while choosing from nominal flow alone can miss regeneration and sizing effects. Explain the operating shifts, shutdowns and any sensitivity to moisture during startup or standby. Treat the normal job mix and the difficult exceptions separately, and mark which drawings or process conditions the supplier must review before it proposes a configuration.

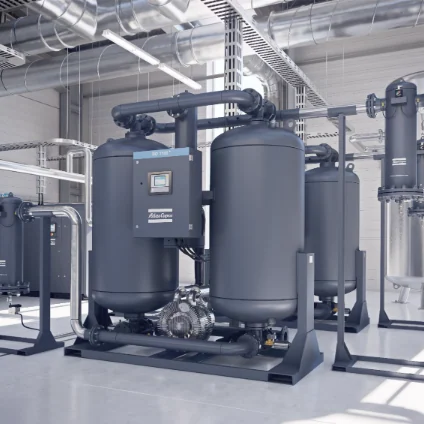

Shown as a configuration reference. Availability and the equipment offered for your project are confirmed separately.
Specify the complete configuration
Compare heatless, heated and blower-regenerated arrangements against available utilities and load behavior. Account for purge or other regeneration demand when reviewing the compressor and treatment train. Specify prefiltration, downstream dust filtration, drains, bypass and monitoring. Ask which dew-point controls and regeneration sequences are included in the selected model rather than applying features from the whole family brochure. Require the quotation to identify supplied options, optional items and interfaces that remain the responsibility of the operating site. Record those decisions with the same requirement revision used for the selection. The cited Atlas Copco BD+ CD+ XD+ families provides an identified category reference. Its manufacturer documentation belongs to that family and configuration; the selection advice here is a buyer checklist, not an offer or a promise of those specifications for another supplier.
Utilities, site layout and installation
Provide working pressure, inlet temperature, ambient conditions and the service layout. Show access for desiccant and filter replacement and any heater or blower equipment. Explain how drains and bypass are managed during maintenance. Review electrical supply and the complete regeneration and depressurization arrangement; the dryer must be matched to the operating site as well as the nominal compressor output. Give the installer a dimensioned layout before approving the order, then assign who supplies each connection, access arrangement and commissioning resource. Resolve these interfaces while changes can still be engineered.
Complete project cost and support
Include filter elements, desiccant replacement, regeneration air or energy, drains and pipe work. Compare net delivered dry air and the full compressor-room duty. State monitoring calibration and maintenance responsibilities. Ask for a documented operating-cost basis using your load profile, while keeping any projected energy benefit separate from a manufacturer example or a feature claim for another configuration. Use a common delivery term, currency and quote validity date. Request named commissioning responsibilities and a support route for the exact supplied configuration, with exclusions and replacement identifiers made visible.
Sample trial and acceptance evidence
Measure pressure dew point under the agreed flow, inlet and pressure conditions through complete regeneration cycles. Check startup and load changes, drains, alarms and the approved bypass state. Record the air supply and actual regeneration settings. Acceptance should demonstrate the specified dry-air condition across the operating sequence, including the relevant changeover between towers, rather than accepting one favorable instantaneous reading. Agree the test inputs, inspection method and responsibilities in writing. Keep the accepted configuration and records together, and repeat the relevant checks if a later modification changes the process or installation assumptions.
OEM/ODM and project customization
OEM/ODM requests for a desiccant air dryer should distinguish branding from process engineering. Describe the requested changes to purge or utility demand, upstream and downstream filters and dew-point control and alarms, then state whether the result must fit an existing line or a new project. Ask for a feasibility review, revised drawings and a clear responsibility for validation. Private labels, packaging and document language can be discussed separately from mechanical, electrical or control changes. Identify tooling ownership, editable files where agreed, revision control and the test that will accept the changed system. Manufacturer images here are configuration references; they do not establish that the pictured brand authorizes relabeling or that IndustryApex is its distributor.
RFQ checklist and next step
Prepare a comparable desiccant air dryer request by identifying required pressure dew point, end-use and lowest temperature, delivered dry-air flow profile and inlet pressure and temperature. Include regeneration method preference, purge or utility demand, upstream and downstream filters and dew-point control and alarms so the supplier can review the operating process and configuration. Finish with drain and bypass arrangement, desiccant service and replacement access, power, ambient and operating shifts and complete-cycle acceptance measurement. Attach the supporting drawings, samples or operating records instead of leaving critical requirements in a free-form price request. State destination country, installation window and the intended decision date. Ask every bidder to return a requirement-to-offer comparison and list unresolved points before price negotiation. This makes changes and exclusions visible and gives the acceptance trial a practical basis.
- Required pressure dew point
- End-use and lowest temperature
- Delivered dry-air flow profile
- Inlet pressure and temperature
- Regeneration method preference
- Purge or utility demand
- Upstream and downstream filters
- Dew-point control and alarms
- Drain and bypass arrangement
- Desiccant service and replacement access
- Power, ambient and operating shifts
- Complete-cycle acceptance measurement
Manufacturer configuration references
Review the linked manufacturer information as configuration references. Request the current sheet, included scope and relevant evidence for the exact proposed equipment; these references do not establish an IndustryApex supply relationship.
What should you include in your RFQ?
- Required pressure dew point
- End-use and lowest temperature
- Delivered dry-air flow profile
- Inlet pressure and temperature
- Regeneration method preference
- Purge or utility demand
- Upstream and downstream filters
- Dew-point control and alarms
- Drain and bypass arrangement
- Desiccant service and replacement access
- Power, ambient and operating shifts
- Complete-cycle acceptance measurement
For OEM / ODM requests, include the branding, packaging, configuration or engineering changes you need, initial and annual quantities, target market, sample approval and acceptance requirements. Feasibility and commercial scope are confirmed for the specific project.
Need OEM / ODM customization?
Submit branding, packaging, configuration or engineering requirements for this equipment. Include the target market, initial and annual quantities, required changes and acceptance criteria.
Customization feasibility, permitted branding, development responsibilities, minimum quantity, cost and lead time are reviewed for the proposed supplier and configuration before a quotation is confirmed.
Frequently asked questions
Does the dryer nominal flow equal usable dry air delivered to production?
It should not be assumed. The selected regeneration method may consume compressed air, and rating corrections can affect capacity. Ask for net delivered flow, required inlet conditions and the compressor demand for the exact configuration. Include prefiltration, outlet filtration and dew-point verification in the comparison.
What configuration details belong in a desiccant air dryer inquiry?
Specify regeneration method preference, purge or utility demand and upstream and downstream filters with the process requirements. Ask the supplier to identify each option and interface in the quoted scope. This lets you compare proposed equipment against the job rather than comparing model labels with different accessories.
Which costs should I include beyond the desiccant air dryer purchase price?
Include the installation and process items needed for drain and bypass arrangement, desiccant service and replacement access and power, ambient and operating shifts, as applicable. Obtain separate prices for consumables, commissioning and support, then align delivery terms and exclusions. Use the agreed duty to compare operating expense rather than applying an unverified saving percentage.
Can I request an OEM/ODM desiccant air dryer configuration?
Yes, you can submit branding or engineering requirements for technical review. Describe changes affecting purge or utility demand and dew-point control and alarms, with destination and interfaces. Feasibility, drawings, scope and acceptance must be agreed before an offer is finalized; the manufacturer reference photograph does not grant private-label rights to that pictured brand.
How should I approve a desiccant air dryer before shipment?
Approve it through a written trial and inspection plan using required pressure dew point and complete-cycle acceptance measurement. Define the agreed conditions, record the supplied configuration and check the operating sequence relevant to your work. Require results tied to the test inputs, so a demonstration or brochure claim is not mistaken for acceptance.
What should I send to obtain a comparable desiccant air dryer quotation?
Send required pressure dew point, end-use and lowest temperature, delivered dry-air flow profile and inlet pressure and temperature, plus drawings or operating records and the destination. Identify the required options and the intended purchase window. Ask for a line-by-line response, including unknowns and exclusions, so all bidders quote the same project.
Reference information
- Atlas Copco: BD+ CD+ XD+ families official reference
- Atlas Copco desiccant drying principles
Reference data and images explain equipment configurations. IndustryApex engineers confirm the offered model, specification and commercial scope in your project quotation.
