Equipment category
Compare furniture, panel and biomass equipment around real material sizes, finish, tooling, dust control and complete job cycles.
A CLT press bonds cross-oriented timber layers into structural panels. Its scope includes layer alignment, glue timing and pressure distribution, distinct from a general flat-panel furniture press or a clamp for parallel glulam beams. Presses orthogonal timber layers; panel build-up and structural validation define the process.
Explore the buying guideReference: Ledinek XS-Press
A veneer peeling lathe rotates a prepared wood block against a cutting knife to produce a continuous veneer ribbon. Block centering, knife geometry and support determine recovery and veneer quality before clipping or drying begins. Peels a continuous veneer ribbon from a block; geometry and veneer recovery distinguish it from slicing.
Explore the buying guideReference: Raute Veneer Lathe R7
A veneer clipper cuts a moving veneer ribbon into sheets or removes defects according to a cutting decision. It is a downstream cutting and recovery module, distinct from the lathe that creates the ribbon. Cuts veneer ribbons into sheets; defect logic and handling integration define the equipment.
Explore the buying guideReference: Raute Veneer clipper
A veneer dryer removes moisture from thin wood sheets or ribbon through controlled heat and airflow. Selection concerns uniform final moisture and acceptable veneer condition, rather than equating heat input or conveyor speed with saleable dry output. Dries thin veneer before bonding; feed moisture variation and sheet transport drive the specification.
Explore the buying guideReference: Raute Veneer Drying Line R7

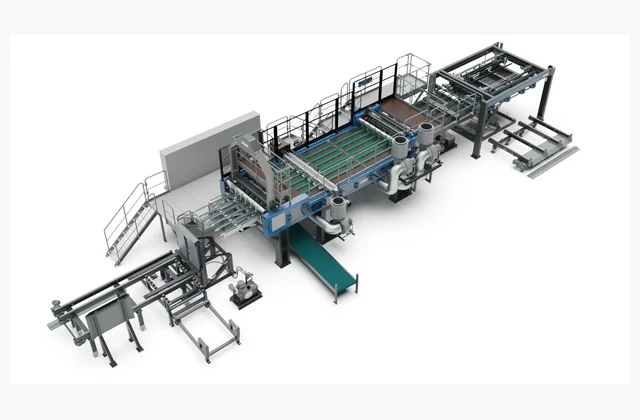

A veneer splicing or composing machine joins smaller veneer pieces into a usable sheet. Face, core and green-veneer compositions impose different seam appearance, joint strength and moisture demands, so they should not be treated as one interchangeable setup. Joins veneer pieces into usable sheets; seam structure and adhesive compatibility define acceptance.
Explore the buying guideReference: Raute Face Veneer Composing Line R7

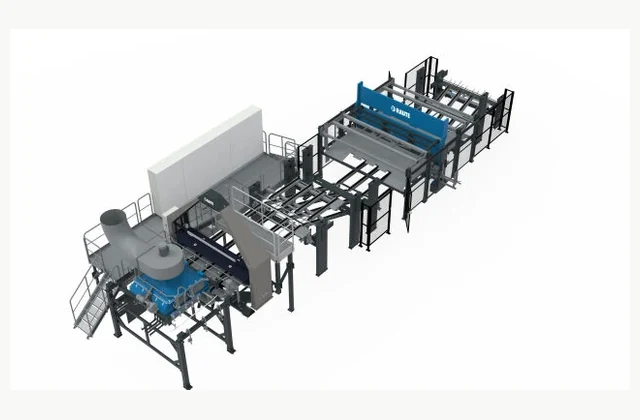

A veneer patching machine removes a localized defect and inserts a matching wood patch before panel assembly. It repairs individual sheets rather than joining narrow pieces into a full composed sheet or repairing a finished plywood panel. Removes and replaces veneer defects; patch matching and sheet support shape the process.
Explore the buying guideReference: Raute Veneer Patching Line R5
A plywood layup line assembles veneer plies with the required grain orientation and adhesive distribution before pressing. Its value depends on correct panel construction and gentle sheet handling, not only the number of sheets transferred. Builds a specified cross-layer veneer stack; adhesive application and layup control define the line.
Explore the buying guideReference: Raute Plywood Lay-up Line R7

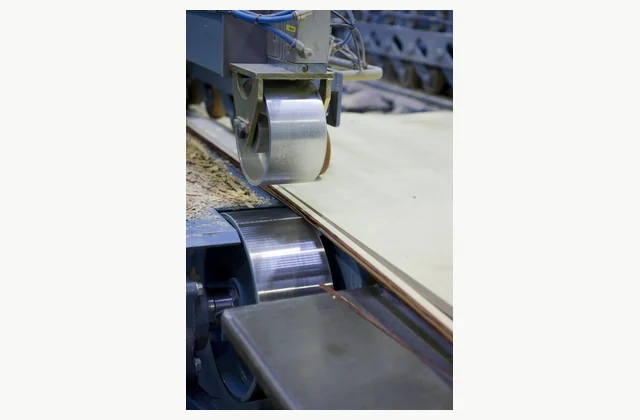

A plywood trimming line cuts pressed panels to final dimensions and square edges before grading or finishing. It is a panel-finishing operation, distinct from clipping a veneer ribbon before plywood manufacture. Trims bonded panels to final dimensions; edge quality and finished-stack handling define scope.
Explore the buying guideReference: Raute Panel trimming line

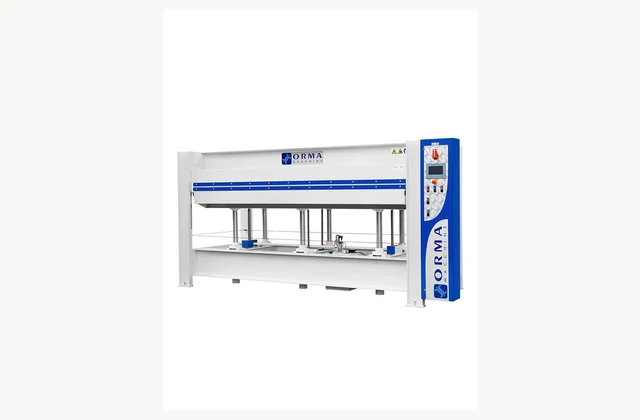

A wood hot press applies controlled pressure and heat to bond or overlay wood-based components. The buying scope is the complete adhesive and substrate stack, distinct from an unheated holding press or a continuous industrial panel-manufacturing line. Bonds wood-based layers under heat and pressure; platen uniformity and glue system define suitability.
Explore the buying guideReference: Ormamacchine NPC DIGIT

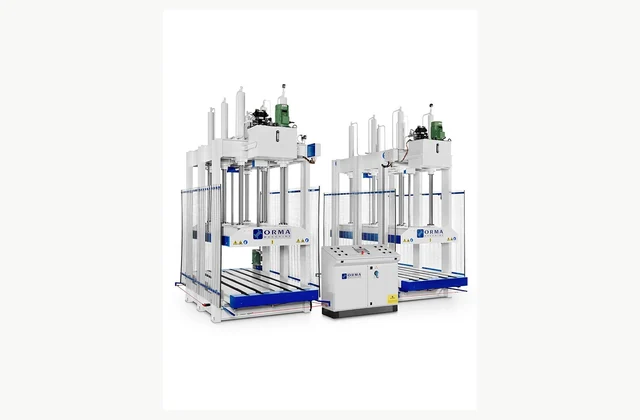

A wood cold press holds a glued assembly under pressure without adding process heat. It is suited to adhesive systems and curing arrangements that work at the qualified ambient conditions, rather than substituting automatically for a hot press. Clamps bonded assemblies without heated platens; adhesive cure and load distribution drive selection.
Explore the buying guideReference: Ormamacchine PFL

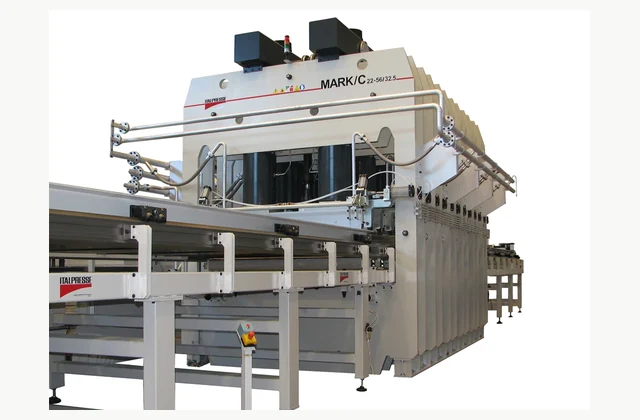

A short-cycle lamination press bonds decorative resin-impregnated paper directly onto a prepared board using controlled heat and pressure. Its dedicated surface-lamination process differs from general veneer hot pressing or manufacturing particleboard itself. Bonds decorative surfaces to panels; surface stack and press-cycle validation distinguish it from general pressing.
Explore the buying guideReference: Italpresse MARK KT short-cycle line
A membrane vacuum press uses a flexible membrane and pressure difference, often with heating, to conform a laminate or veneer over a shaped substrate. Its selection depends on geometry and adhesive behavior rather than only the flat table size. Forms a covering over shaped panels using membrane or vacuum; finish geometry and adhesive define the process.
Explore the buying guideReference: Ormamacchine OMNIA
Build a comparable request
Share the application, required output, destination, utilities, quantities and planned timing. For OEM / ODM projects, include the branding, configuration or engineering changes, sample approval and acceptance requirements.
Practical buying decisions
A comparable wood membrane vacuum press quotation starts with wood membrane vacuum press application and required process result, profile geometry and covering material, membrane heat and vacuum sequence. Record the required result, site interfaces and acceptance evidence in one revision-controlled RFQ. IndustryApex engineers use these…
Read the guideA comparable short cycle lamination press quotation starts with short cycle lamination press application and required process result, board and decorative paper system, thermal cycle and texture tooling. Record the required result, site interfaces and acceptance evidence in one revision-controlled RFQ. IndustryApex engineers use these…
Read the guideA comparable wood cold press quotation starts with wood cold press application and required process result, assembly geometry and adhesive cure, load distribution and daylight. Record the required result, site interfaces and acceptance evidence in one revision-controlled RFQ. IndustryApex engineers use these inputs to define…
Read the guide
