Equipment category
Specify compressed air, process gases, water, cooling, vacuum and filtration using measured operating conditions and complete system boundaries.
A steam boiler converts fuel or electrical input into steam for a specified process network. Steam demand, feedwater condition and pressure-control behaviour determine the usable installation. Provides process steam; demand profile, fuel, emissions and vessel requirements need project review.
Explore the buying guideReference: Bosch UL-S
An industrial hot-water boiler heats a circulating water circuit below the agreed design limits. It serves a different duty from a steam boiler and must match the process supply and return temperatures. Supplies a hot-water process loop; temperature range and return conditions define the duty.
Explore the buying guideReference: Bosch UT-M
A thermal-fluid heater transfers heat to a circulating organic heat-transfer fluid for an indirect process. Fluid selection, film temperature and circulation are central to reliable operation. Heats a circulating thermal fluid; fluid choice and process-temperature control define the scope.
Explore the buying guideReference: Fulton FT-C
A steam-trap station removes condensate and non-condensable gases while limiting live-steam loss. Trap type, differential pressure and the actual condensate load must fit the connected equipment. Removes condensate at steam users; application duty and maintenance isolation govern selection.
Explore the buying guideReference: Spirax Sarco STS17.2

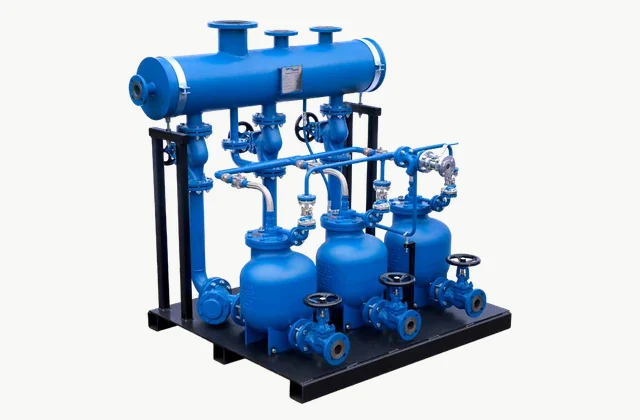

A condensate recovery package collects and returns suitable condensate to a steam system. Recovery depends on return pressure, flash steam, contamination risk and the amount that can safely be reused. Returns condensate to the steam system; pressure, contamination and lift define the package.
Explore the buying guideReference: Spirax Sarco packaged mechanical condensate pump unit
A thermal deaerator heats feedwater and releases dissolved gases through an engineered contact and venting process. Storage, steam supply and pump suction conditions belong to the same boiler-feedwater duty. Prepares boiler feedwater by removing gases; feed conditions and steam integration matter.
Explore the buying guideReference: Sterling Deaerator spray-tray deaerator vessel design
A gasketed plate exchanger transfers heat between separated streams through corrugated plates clamped in a frame. Its suitability depends on the thermal programme, pressure drop, fluids and gasket compatibility. Plate-and-frame heat transfer with service access; fluid fouling and temperature approach guide selection.
Explore the buying guideReference: Alfa Laval TS45
A shell-and-tube exchanger transfers heat across tube walls between separate shell and tube circuits. The manufacturer example represents engine jacket-water cooling; other process fluids require their own compatibility and thermal review. Tubular heat transfer; mechanical cleaning, pressure differential and fluid compatibility define design.
Explore the buying guideReference: EJ Bowman Tubular shell-and-tube heat exchanger

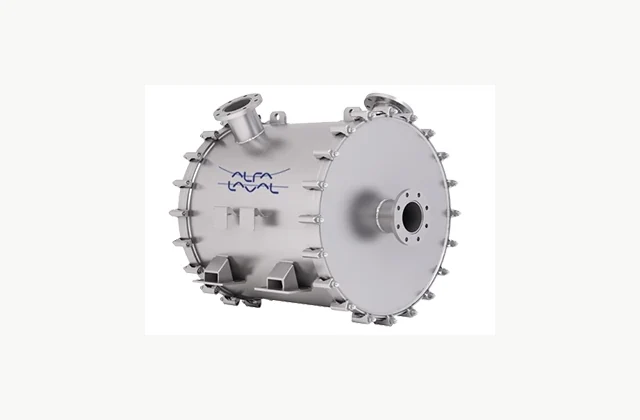

A spiral exchanger uses curved flow channels separated by heat-transfer surfaces. Selection must address the actual fluid rheology, solids behaviour and access for inspection rather than assuming every slurry is suitable. Spiral-channel heat exchange for a stated fluid duty; fouling and service requirements distinguish it.
Explore the buying guideReference: Alfa Laval SpiralPro
An air-cooled exchanger rejects process heat to ambient air across a finned coil or tube bundle. Its thermal performance changes with ambient conditions, air recirculation and fan operation. Rejects process heat to ambient air; climate and fan operation shape the delivered scope.
Explore the buying guideReference: Güntner V-shape COMPACT
An open cooling tower rejects heat by contacting circulating water with air and evaporating part of that water. Wet-bulb conditions, water treatment and system hygiene define its operating context. Direct evaporative cooling of circulating water; water treatment and ambient design conditions matter.
Explore the buying guideReference: Baltimore Aircoil Series 3000 open cooling tower

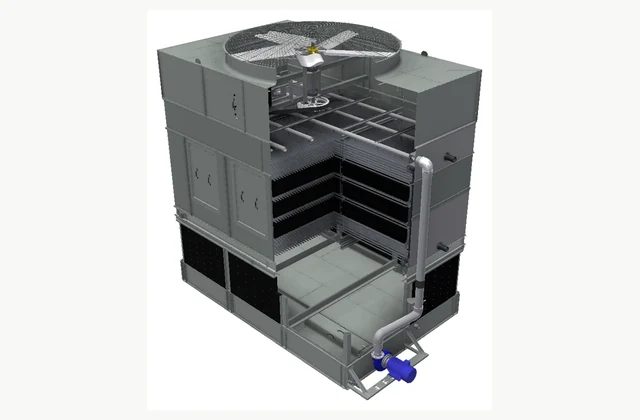

A closed-circuit fluid cooler keeps the process fluid inside a heat-transfer coil while an external air and spray-water circuit rejects heat. The two water circuits have different treatment and maintenance requirements. Keeps process fluid within a closed coil; secondary water circuit and freeze strategy need review.
Explore the buying guideReference: Baltimore Aircoil PFi cutaway

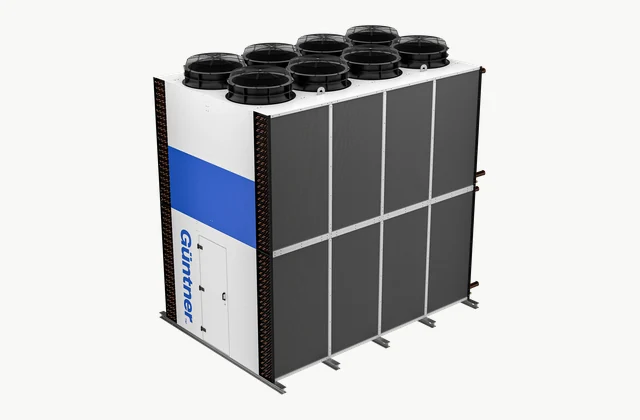

An adiabatic dry cooler rejects heat through an air coil, with wetted pads used to pre-cool entering air when required. The process-fluid loop remains separate from pad water. Uses ambient dry cooling with assisted evaporation; water use and climate define suitability.
Explore the buying guideReference: Güntner High Density adiabatic dry cooler

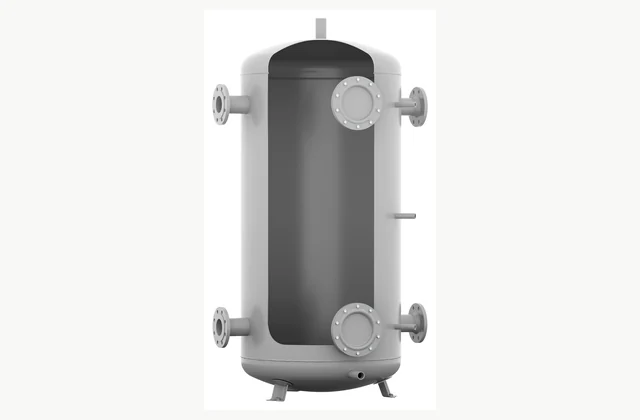

A thermal buffer tank adds controlled water-side thermal storage to a heating or cooling circuit. It is distinct from potable hot-water storage, and the reference design is for water heating and cooling duties. Buffers a thermal loop; stratification, vessel duties and usable temperature range define design.
Explore the buying guideReference: Reflex Winkelmann Storatherm Heat H/R2 buffer tank sectional design
A flue-gas economizer recovers heat from boiler exhaust into a compatible water or process circuit. Recovery potential depends on exhaust composition, temperature and the useful heat sink. Recovers flue-gas heat into a useful circuit; condensation and corrosion boundaries require review.
Explore the buying guideReference: Bosch ECO stand-alone
Build a comparable request
Share the application, required output, destination, utilities, quantities and planned timing. For OEM / ODM projects, include the branding, configuration or engineering changes, sample approval and acceptance requirements.
Practical buying decisions
A comparable boiler flue gas economizer quotation starts with boiler flue gas economizer application and required process result, exhaust and recovery programme, condensing and materials choice. Record the required result, site interfaces and acceptance evidence in one revision-controlled RFQ. IndustryApex engineers use these inputs to…
Read the guideA comparable industrial thermal buffer tank quotation starts with industrial thermal buffer tank application and required process result, storage and load cycle, hydraulic and sensor arrangement. Record the required result, site interfaces and acceptance evidence in one revision-controlled RFQ. IndustryApex engineers use these inputs to…
Read the guideA comparable adiabatic dry cooler quotation starts with adiabatic dry cooler application and required process result, ambient and process duty, pad water and control strategy. Record the required result, site interfaces and acceptance evidence in one revision-controlled RFQ. IndustryApex engineers use these inputs to define…
Read the guide
